XMax Vital Dry Herb Vaporiser

XMax Vital – Technical Specifications & Operation Guide

Product Identification

• Brand: XMax / XVape

• Model: Vital

• Classification: Dry Herb Heating Device

Technical Specifications

• Heating Technology: Convection-assisted conduction heating

• Chamber Architecture: High-capacity, wide-mouth ceramic heating chamber with embedded heating elements

• Chamber Capacity: Accommodates approximately 0.3g to 0.5g of dry ground material

• Mouthpiece Assembly: Removable plastic construction equipped with an integrated ceramic filter screen

• Temperature Range: 100°C – 240°C (212°F – 464°F) with single-degree precision adjustments

• Heat-Up Velocity: Reaches baseline operational temperatures in approximately 15 seconds

• Battery Configuration: Internal, non-removable 2600 mAh rechargeable battery (18650 cell structure)

• Charging Interface: Micro-USB charging port

• Power Input Restrictions: Strict maximum charging limit of 5.0V / 1A

• Display Technology: Integrated digital OLED screen

• Memory Architecture: Automatic temperature memory retention system

• Chassis Construction: Rigid, rubberized thermal exterior shell

• Device Dimensions: 125mm Height x 31mm Diameter

• Device Net Weight: 80 grams

Standard Operating Instructions

Power Control & Session Initiation

• To Turn On/Off: Press and hold the primary circular power button continuously for three (3) seconds. The integrated OLED screen will illuminate to display the system status.

• Heating Control: Upon power activation, the heating element immediately engages. A dedicated status icon on the OLED display panel flashes consistently throughout the initial heat-up stage.

• Ready Indicator: The status icon stops flashing and remains completely solid once the oven matches the assigned target temperature setting.

Temperature Customisation & Scale Toggle

• To Alter Temperature: Click or hold the dedicated plus (+) or minus (-) directional setting keys located on the front of the chassis to adjust the target thermal ceiling by 1-degree increments.

• To Switch Scale (°C / °F): Hold down the primary power button and the minus (-) setting button simultaneously for two seconds.

Session Timer Mode Swaps

• To Toggle Auto-Shutoff Timers: The device includes a dual-mode automatic safety cutoff set to either a 5-minute or a 10-minute operation cycle. To switch between these two session constraints, press and hold the primary power button and the plus (+) setting button concurrently for two seconds.

Material Loading Process

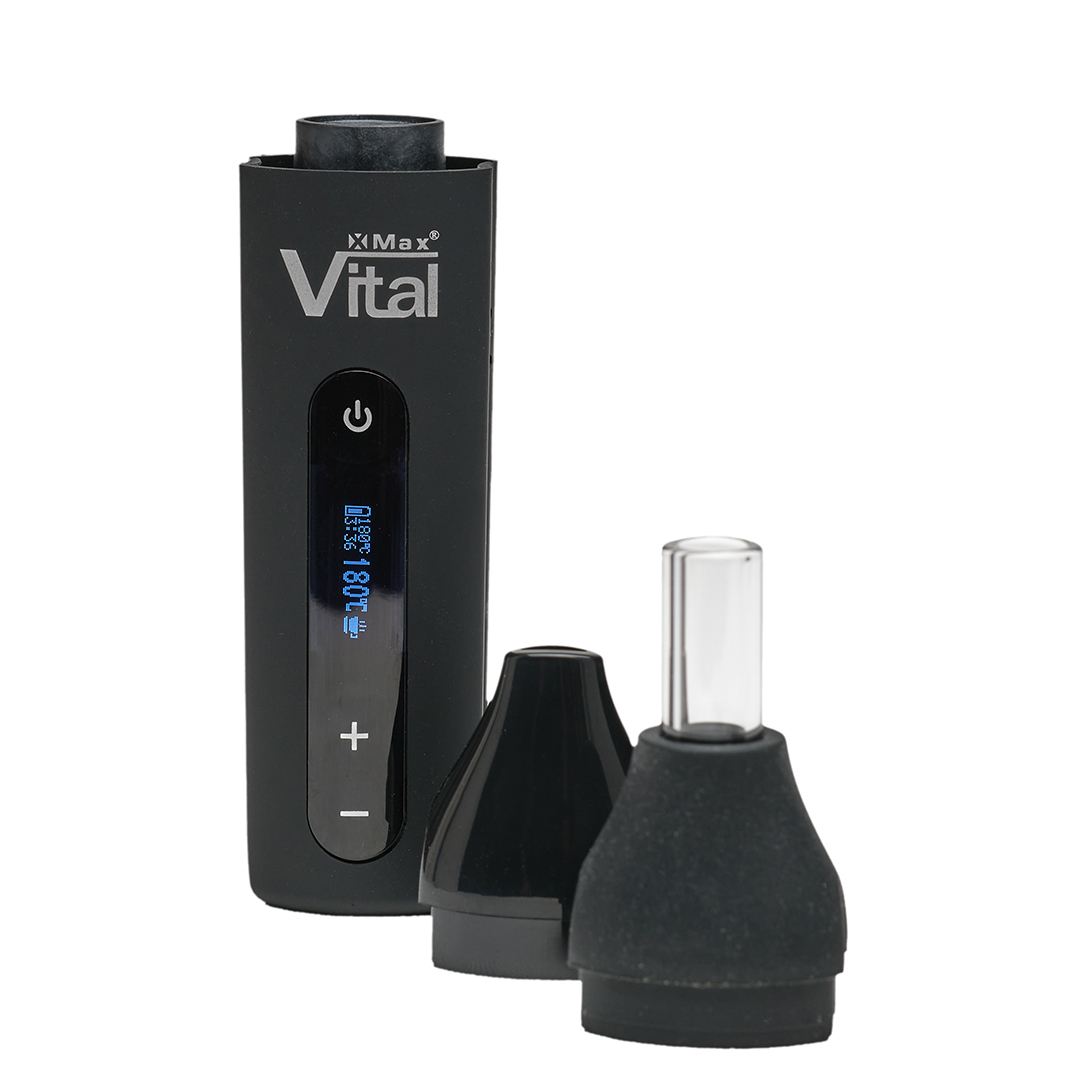

• Accessing the Chamber: Pull the rubberized mouthpiece assembly directly upward and away from the top of the device body to reveal the wide ceramic oven entrance.

• Loading Instructions: Place ground dry herb material loosely into the ceramic basin. Do not compact or over-compress the contents, to ensure the internal airflow pathways remain completely unhindered. Press the mouthpiece back down into place until it seats flush against the chamber lip.

Maintenance & Cleaning

• Chamber Cleanup: Power the device down and allow the components to cool entirely. Extract the mouthpiece and clear loose spent residue using the physical packing tool or cleaning brush provided in the factory packaging.

• Mouthpiece & Screen Sanitisation: Unclip the interior filter assembly located on the base of the mouthpiece. Wipe down the ceramic filtration piece and internal plastic housing paths with a cotton swab lightly dampened with Isopropyl Alcohol (90% or higher). Allow all components to dry fully before reassembly.

• Safety Protocol: Store the device in a cool, dry setting away from localized climate extremes and out of reach of minors. Do not allow the physical battery cell to deplete completely past 2% charge thresholds for extended periods.

XMax Vital Specs:

• Heating Chamber: Full Ceramic
• Display: OLED screen
• Temperature Range: 100°F – 240°C
• Session Duration: Dual Cycle (5 mins or 10 mins)
• Battery: Samsung 2600mAh
• Charging: USB

What’s in the box:

• 1 x XMax Vital Vaporiser
• 1 x Screens set
• 1 x USB cable
• 1 x Cleaning kit
• 1 x User manual
