DynaVap M 2021 – Technical Specifications & Operation Guide

Product Identification

• Brand: DynaVap

• Model: “M” (2021 Edition)

• Classification: Non-Electronic, Thermal Extraction Dry Herb Heating Device

Technical Specifications

• Heating Technology: Hybrid conduction/convection thermal extraction

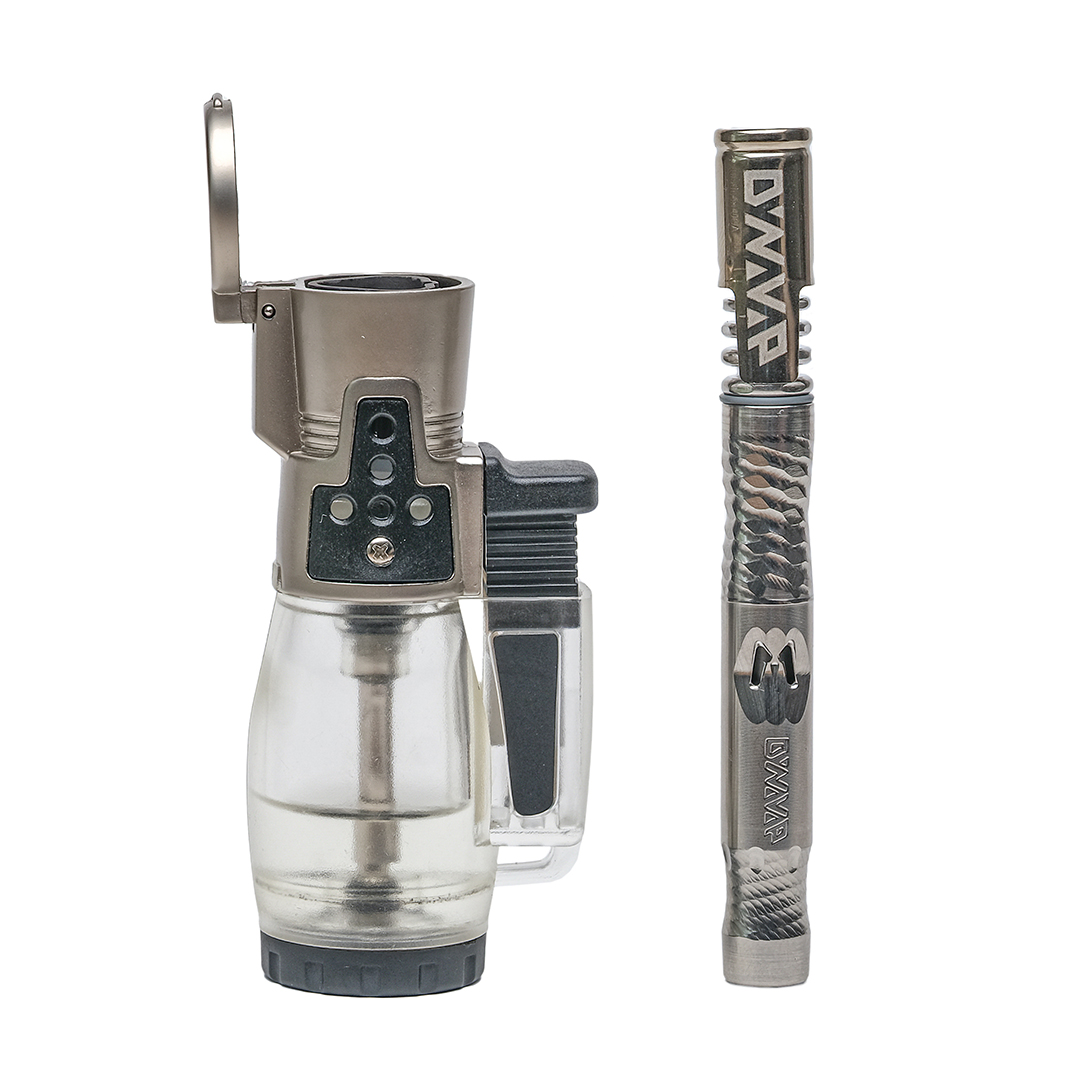

• Power Source: External heat source required (Butane torch lighter or induction heater recommended)

• Material Composition: Medical-grade stainless steel construction

• Temperature Range: Approximately 150°C to 230°C (Dependent on manual flame positioning)

• Heat-Up Indicator: Audible bi-metallic dual-disc mechanical “clicking” cap

• Chamber Capacity: Maximum 0.1 grams (Adjustable down to 0.01 grams)

• Airflow Management: Dual mirrored “Next-Gen Chiral” airports

• Mouthpiece Interface: 10mm tapered geometry (Natively interfaces with 10mm female water tool connections)

• Device Length: 89mm

• Device Weight: 21 grams

Standard Operating Instructions

Material Loading & Adjust-A-Bowl Setup

• Accessing the Oven: Pull the structural Captive Cap straight off the stainless steel tip assembly.

• Chamber Adjustments: The device features an integrated “Adjust-a-bowl” configuration. To reduce the chamber size by 50%, push the interior condenser tube into the base of the tip to click the mesh screen (CCD) forward into its secondary localized notch.

• Loading Herbs: Place dry flower loosely into the tip chamber. Replace the Captive Cap securely back onto the tip prior to applying heat.

Thermal Activation (The Heating Cycle)

• Flame Positioning: Hold the device at a 45-degree angle. Apply the blue flame of a butane torch lighter directly to the side of the metal cap while continuously rotating the device between your fingers to prevent hot spots or combustion.

• Thermal Control: * Heating near the tip/end of the cap results in lower operational temperatures.

  • Heating near the base/crimp of the cap results in higher operational temperatures.

• The Activation Alert: Stop applying heat immediately upon hearing the mechanical “CLICK” sound. Inhalation can now proceed through the mouthpiece.

The Cooling Cycle & Reheating

• The Deactivation Alert: The device remains at functional temperature for roughly 20 to 30 seconds. Do not reapply flame to the device until you hear the secondary cool-down “CLICK”.

• Safety Warning: Reheating the device before the cool-down click occurs will cause internal combustion of the material and potential structural damage to the bi-metallic discs inside the cap.

Maintenance & Cleaning

• De-Capping: Once the cool-down click has sounded, remove the cap. The external protrusion tang on the cap capably serves as an integrated tool to scrape out spent material from the chamber.

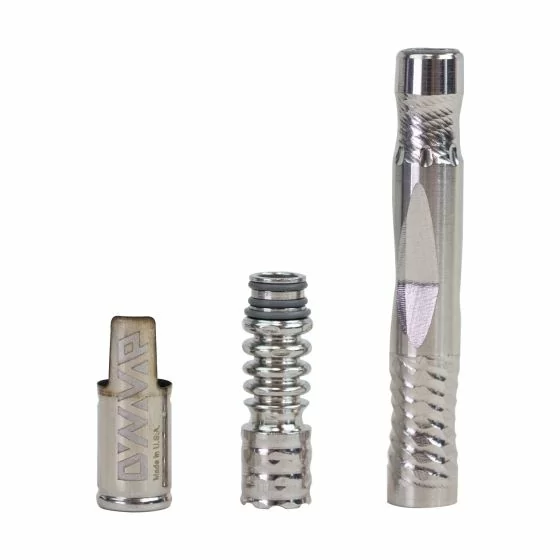

• Washing Protocol: Disassemble the components entirely (Tip, Condenser, Stem, and Cap). Clean the stainless steel and internal pathways by soaking in Isopropyl Alcohol (90% or higher). Rinse thoroughly with warm water and allow all components to dry completely before reassembly.

• Product Name: DynaVap M 2021
• Heating Type: Manual, Flame-Powered
• Material: Stainless Steel
• Chamber Capacity: Up to 0.1g, operates with as little as 0.01g
• Height: 89mm

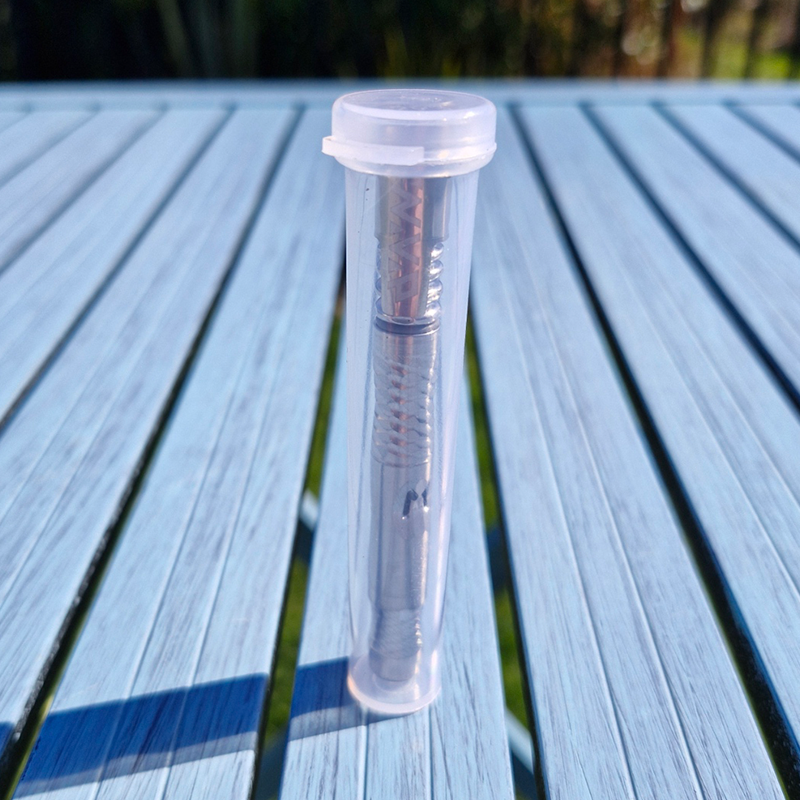

• Packaging: Clear protective tube
• Heating Method: External heat source (torch lighter recommended, not included)
